Product Description

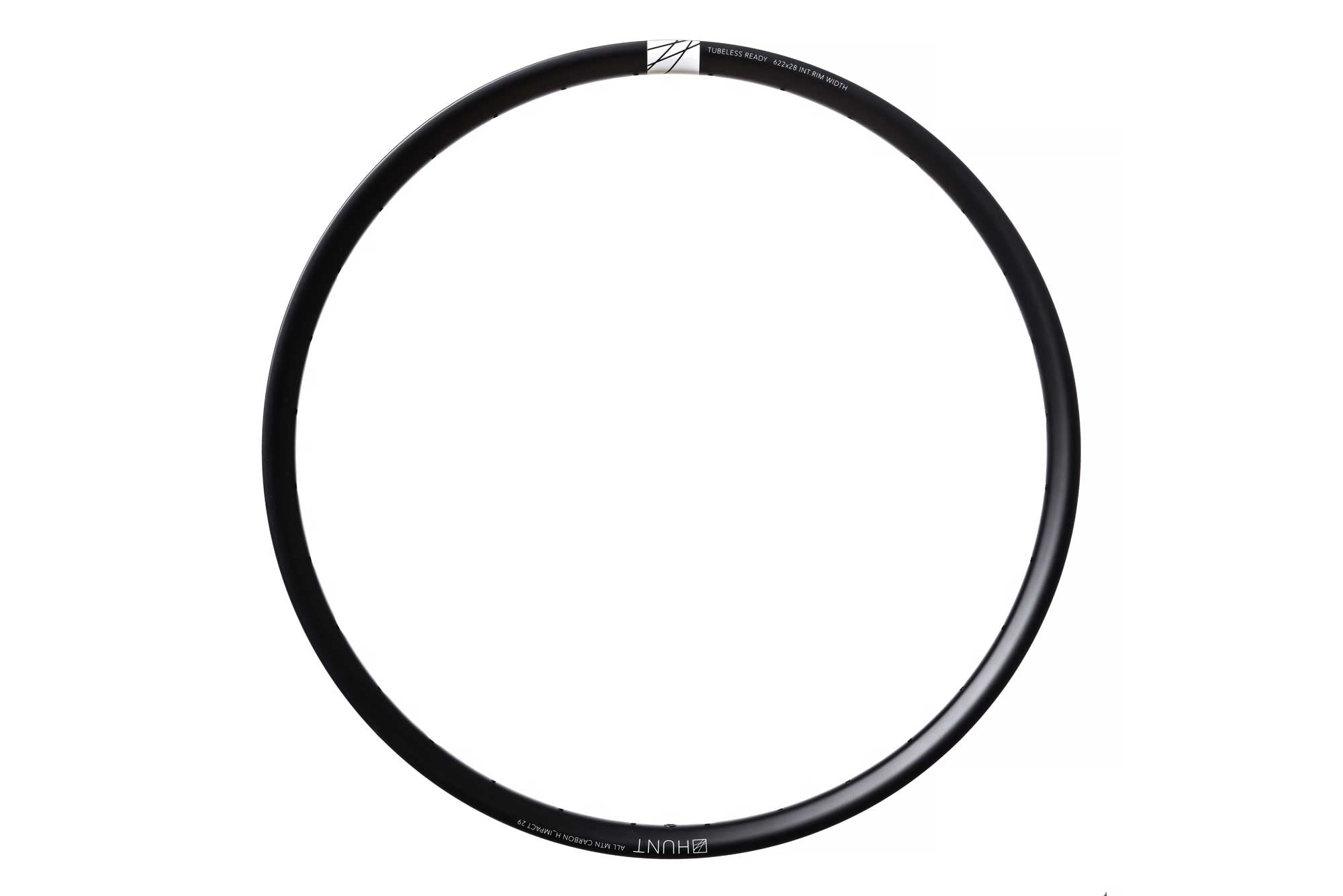

All-MTN Carbon: Front and rear specific rims optimized for compliancy up front and high impact strength out back

Responsive, compliant and incredibly strong

27.5" | 28 Wide Int | 475g

We put a huge emphasis on durability for the All-MTN rim - Unidirectional T24/30 with 3K weave reinforced spoke holes, Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. The resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Front rim weight 475g – Excellent handling and vibration absorption due to the lower material density lay-up, matched to 28 spoke count to improve compliance and grip where it’s needed most.

Detailed Specifications

Rim

• Hookless Tubeless-ready – designed to work excellently with tubeless tyres.
• H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
• Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration
• H-lock bead-seat up-kicks for easy and secure tubeless installation
• 28mm internal width ideal for 2.3"-2.5" tyre widths, but also work very well with 2.25"-2.6".
• Maximum tyre pressure for this rim: Up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre.
• ERD: 560mm
• Lacing: Cross 3
• Recommended Spoke Tensions: 105-120 kgf
