Product Description

Fit wide tyres, go ride where you want, enjoy the freedom and high spoke count durability.

24 DEEP | 25 WIDE Ext | 20 Wide Int | 430G

Thanks to disc brakes the line between road bikes and cross bikes has been well and truly blurred. Many of us now rightly see bikes as our keys to freedom; the freedom to roam and find undiscovered routes and just have a blast. We want to go fast on-road, but often the routes we want to ride also lead off-road. The SuperDura Dynamo wheelset is designed for all of us. The SuperDura Dynamo Disc is now available as a rim only.

High-performance technology that will deliver you to the finish every time. A strong and lightweight 6061-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is true disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface, it also looks stunning. The rim dimensions are extra wide at 25mm (20mm internal) which creates a great tyre profile with wider 25-45mm tyres, giving excellent grip and lower rolling resistance.

Detailed Specifications

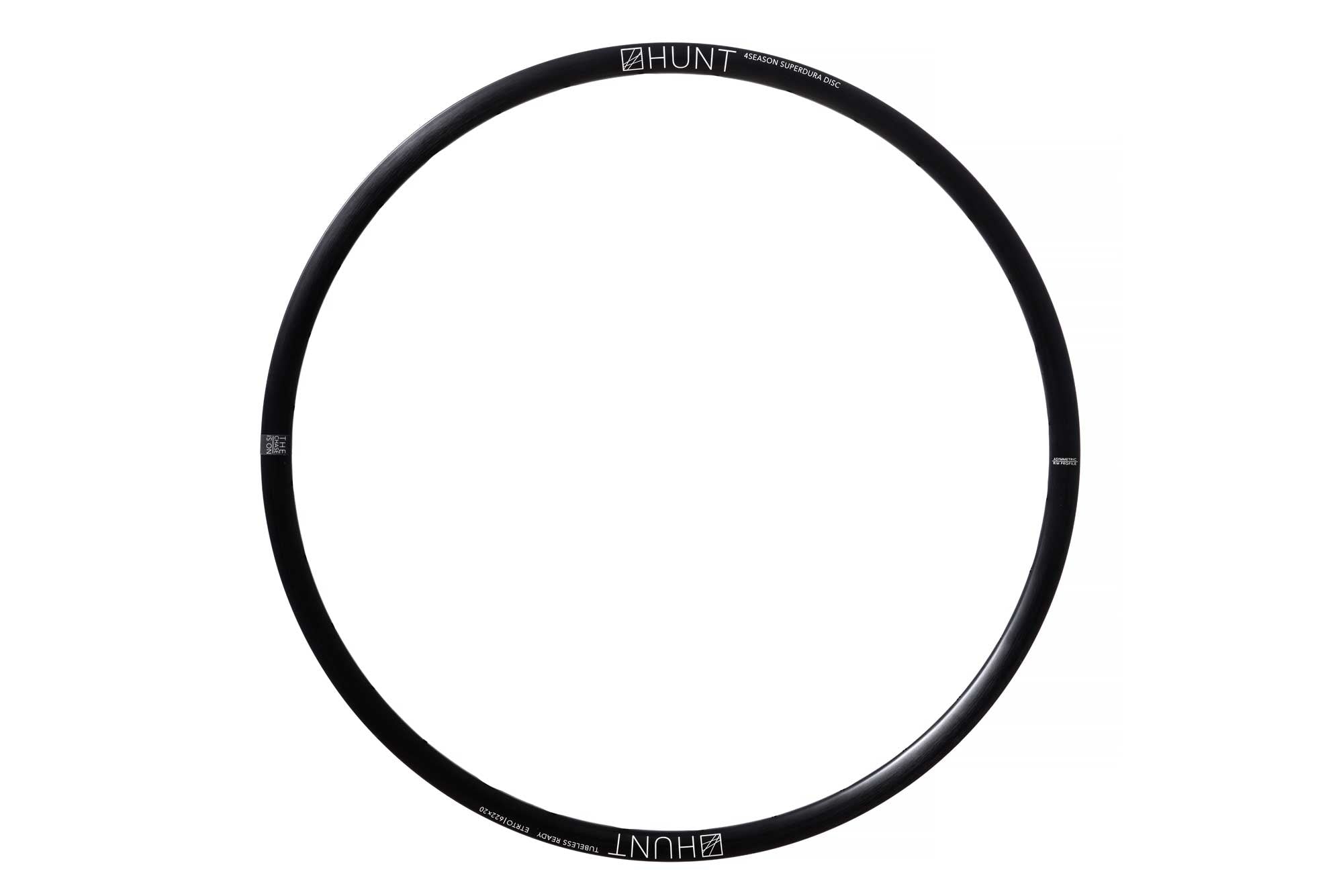

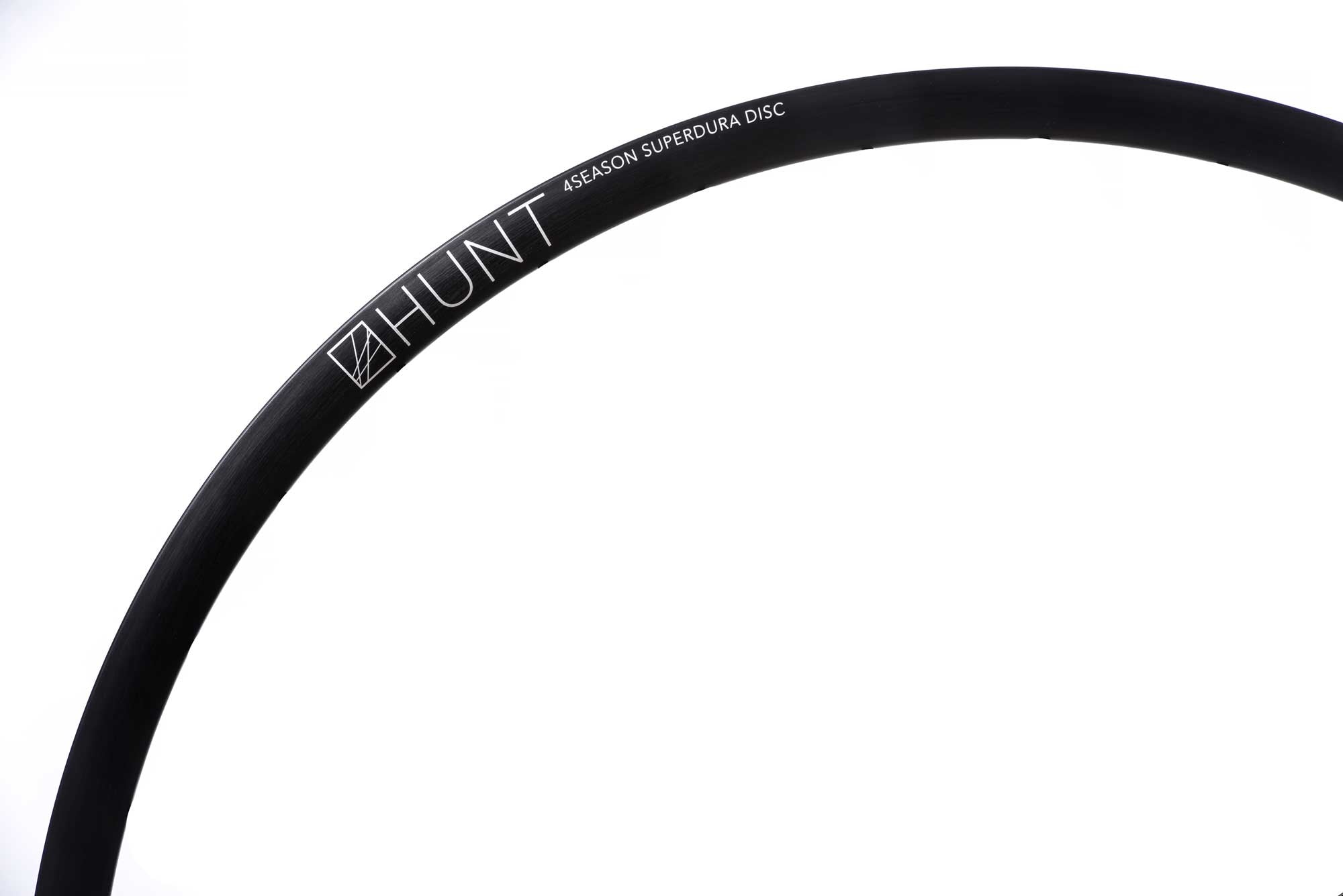

Rim

• Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres.
• 6061-T6 heat-treated aluminium alloy.
• 32 hole
• Asymmetric to balance spoke tensions
• Disc-specific tubeless-ready profile
• 25mm outer and 20mm inner width ideal for 25-45mm tyre widths
• 24mm depth
• Matt black anodized finish with matt white heated decals for excellent durability

• Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road. The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre. Suitable for tyres from 23mm up to 50mm wide.
• ERD 596mm
• The spoke holes on these rims are offset by 3mm.
• Lacing:
• Front - Cross 3
• Rear - Cross 3
• Recommended spoke tension:
• Front/Rear - 105-120kgf
